IPex30, IPex12

IPex30G

Irrigation programmer

Description

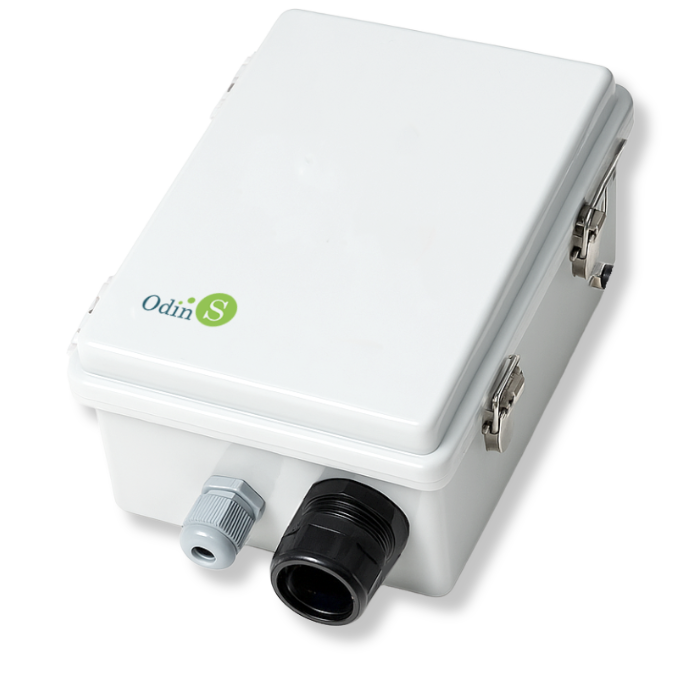

The IPex30G is a platform-connected irrigation controller that uses mobile wireless technologies such as GPRS, NB-IoT, LTE and CAT-1 bis, allowing for remote control via the management platform.


It can manage up to 60* sectors governed by 40 sequential programs, with the capacity to manage up to 64 sectors per program.

* 60 sectors connecting an IPex30E.

  • 30 24 VAC outputs (expandable to 60 with IPex30E)
  • 4 analog inputs (0-0.5 V, 0-1 V, 0-2.5 V, 0-5 V, 0-10 V, 4-20 mA)
  • 4 digital inputs (potential-free) for pulse counters or general purpose
  • 1 SDI-12 port with management of up to 16 probes (16 addresses)
How many sectors can you handle with an IPex30G? The device has 30 24 VAC outputs. The IPex30E is an extender that allows you to increase the number of valves to 60 and the number of counters to 8. Both devices are sold separately.
Video Manual

To request additional documentation, please write to support@odins.es
